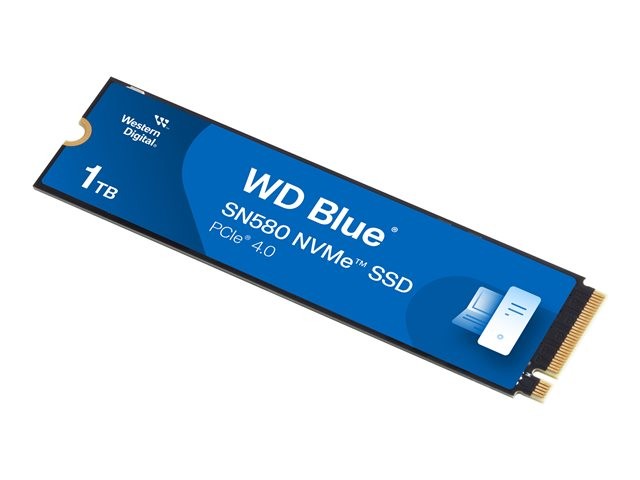

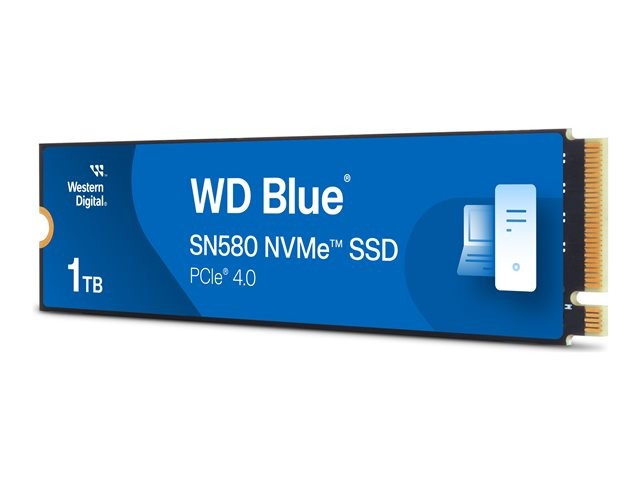

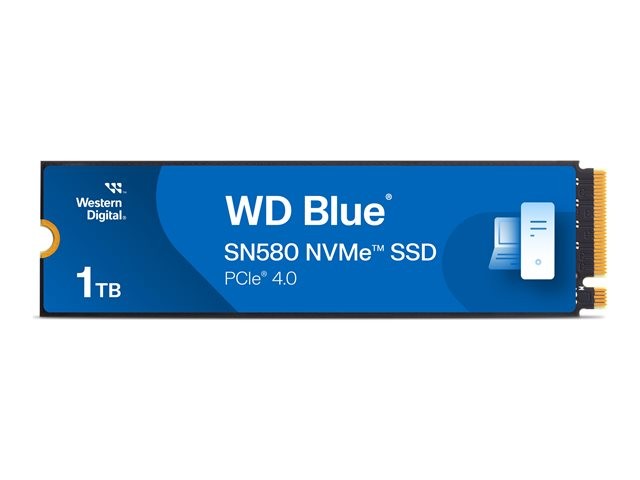

WD Blue SN580 WDS100T3B0E - SSD - 1 TB - internal - M.2 2280 - PCIe 4.0 x4 (NVMe)

Description

Spark Your Imagination with the WD Blue SN580 NVMe SSD with PCIe Gen 4.0 for creators and professionals. Boost productivity or design creatives effortlessly by upgrading to PCIe Gen 4.0 SSDs with up to 4,150 MB/s read speeds (1TB and 2TB models). With up to 2TB of storage on a slim M.2 2280 form-factor, applications, data, and media such as photos, 4K videos, and music can be stored on the same drive. Keep creating uninterrupted when you're in the zone or on the go with low-power storage to maximize your laptop's battery life.

Key Selling Points

• Endurance of up to 900TBW
• Boosts productivity and creativiity with PCIe Gen 4.0 and up to 4150 MB/s read speeds (1TB and 2TB models)
• Make light work of heavy files with Western Digital's nCache 4.0 technology enabling blistering fast copying of large files or media assets

Product Features

• Make light work of heavy files
• Launch applications, load, edit, and publish content with PCIe Gen 4.0 speeds up to 4,150 MB/s (1TB and 2TB models) and fast file copies with nCache 4.0 technology.
• Designed for content creators and professionals
• The WD Blue SN580 NVMe SSD boosts creative workflows, delivering application responsiveness for multiple projects. The low-power design prolongs battery life, so you can keep working or creating when you're in the zone.
• High performance, low lag time
• PCIe Gen 4.0 high performance delivers transfer speeds of up to 4,150 MB/s (1TB and 2TB models) to quickly load large digital assets or when publishing your projects.

Main Specifications

Product Description

• WD Blue SN580 WDS100T3B0E - SSD - 1 TB - PCIe 4.0 x4 (NVMe)
• Type
• Solid state drive - internal
• Capacity
• 1 TB
• Form Factor
• M.2 2280

Interface

• PCIe 4.0 x4 (NVMe)
• Features
• TCG Pyrite 2.01, ATA security, nCache 4.0 technology
• Dimensions (WxDxH)
• 0.9 in x 3.1 in x 0.1 in

Weight

• 0.19 oz

Manufacturer Warranty

• 5-year warranty

General

• Device Type: Solid state drive - internal
• Capacity: 1 TB
• Form Factor: M.2 2280
• Interface: PCIe 4.0 x4 (NVMe)
• Features: TCG Pyrite 2.01, ATA security, nCache 4.0 technology
• Width: 0.9 in
• Depth: 3.1 in
• Height: 0.1 in
• Weight: 0.19 oz

Performance

• SSD Endurance: 600 TB
• Internal Data Rate: 4150 MBps (read) / 4150 MBps (write)
• 4KB Random Read: 600000 IOPS
• 4KB Random Write: 750000 IOPS

Reliability

• MTBF: 1,500,000 hours
• Expansion & Connectivity
• Interfaces: 1 x PCI Express 4.0 x4 (NVMe) - M.2 M key
• Compatible Bay: M.2 2280

Power

• Power Consumption: 65 mW (active) ¦ 3.3 mW (sleep)

Miscellaneous

• Compliant Standards: BSMI, CAN ICES-3(B)/NMB3(B), FCC, KCC, Morocco, RCM, TUV, UL, VCCI

Manufacturer Warranty

• Service & Support: Limited warranty - 5 years

Environmental Parameters

• Min Operating Temperature: 32 °F
• Max Operating Temperature: 185 °F
• Min Storage Temperature: -40 °F
• Max Storage Temperature: 185 °F
• Shock Tolerance (operating): 1500 g @ 0.5 ms half-sine
• Vibration Tolerance (operating): 5 g @ 10-2000 Hz
• Vibration Tolerance (non-operating): 4.9 g @ 7-800 Hz
